THE SYSTEM

Parts and fixing units

THE IRANDIPRO SYSTEM – PARTS:

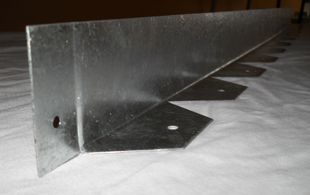

The IrandiPRO Edge Rail

  • Main system component.
  • Manufactured from high quality galvanised steel.
  • Part Number: IPR130309

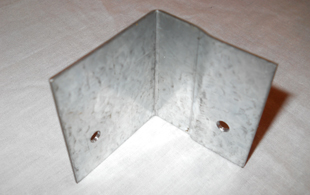

The IrandiPRO 90° External

  • Secondary component enabling 90° bend when bend formed around paved surface.
  • Manufactured from high quality galvanised steel.
  • Part Number: IPR170986

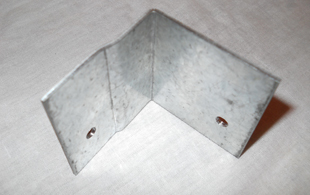

The IrandiPRO 90° Internal

  • Secondary component enabling 90° bend when bend formed within paved surface.
  • Manufactured from high quality galvanised steel.
  • Part Number: IPR170987







THE IRANDIPRO SYSTEM – FIXING UNITS:

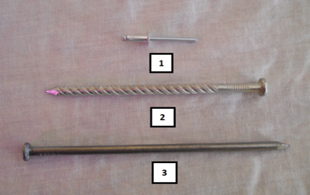

The IrandiPRO Edge rail is fixed to the prepared base utilising either regular wire or spiral nails, pending the base conditions. Corresponding units and internal/external bends are fixed together using standard aluminium rivets.

  1. 4.8 x 12mm Aluminium Rivet
  2. 120mm Spiral Steel Nail
  3. 150mm Round Wire Nail

Note:
As these fixing units are industry standard and widely available, they are not generally supplied as part of the IrandiPRO system, however, we’ll gladly supply these should it be requested as an over extra item.
